Designed Mainly For Drag Racing
There are no mounting provisions for sway bar link or brake line
These must be considered before using in street applications

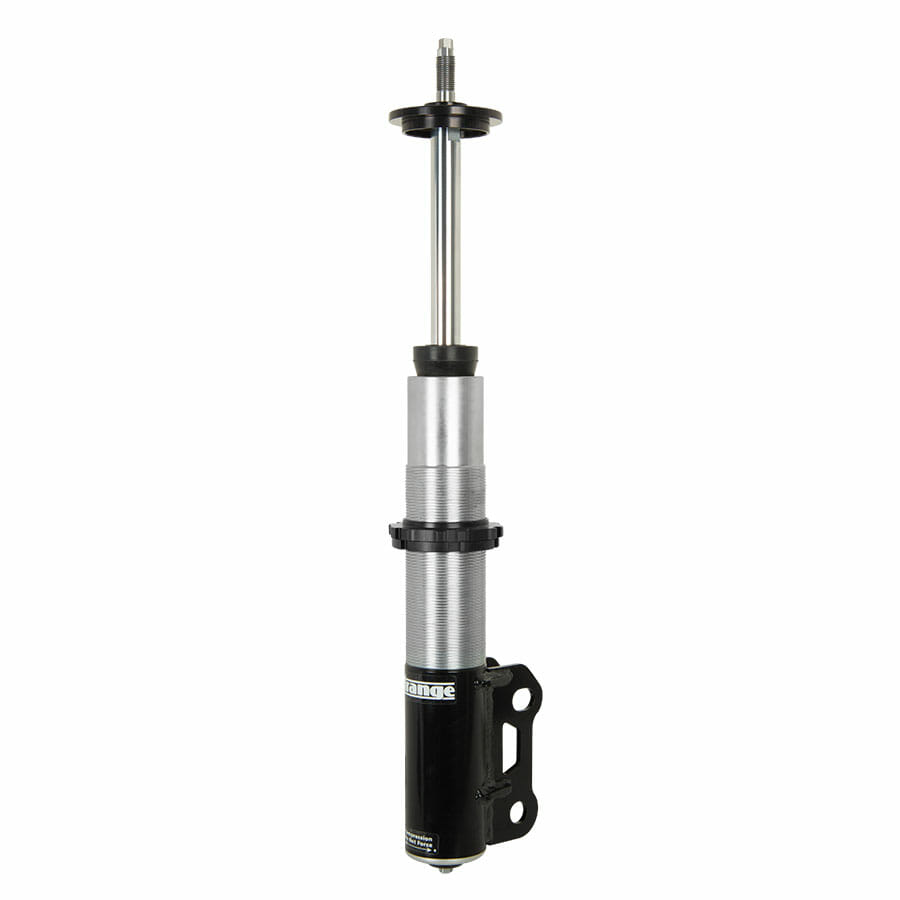

2016-2023 Camaro Double Adjustable Steel Strut
Reuses factory upper mount
Requires 16″ x 2 1/2″ I.D. spring – Sold Separately
Sold as Each
Extension Adjustment
Softer – Allows for more weight transfer
Stiffer – Enables quicker reaction times
Compression Adjustment
Softer – Improves reaction to bumps in the track
Stiffer – Dampens impact forces from wheel stands
Features
• Independent external adjusters
• 3 1/8 turns of extension adjustment
• 13 compression settings
• Provides a wide range of control
• Allows quick adjustments for varying conditions
• Integral coil-over body
• Permits easy changes in ride height
• Custom valving available upon request
• Ability to be rebuilt or revalved
Spring Recommendation
• 16″ 100-125 lbs
• Consult your chassis builder for their suggestion
