Strange HD 9" Ford Housing 1988-1998 Chevy C1500 & K1500 1992-1994 Blazer / 1995-1999 Tahoe / 1992-1999 Suburban

$950.00

Part Number: HF9LEG88C15ME

Applications
1988 to 1998 Chevy C1500 & K1500
1992 to 1994 Full Size Blazer
1995 to 1999 Tahoe
1992 to 1999 Suburban
OEM mount locations
Factory 1/2″ pinion offset to the passenger side

NOTES:
Will not fit OEM brakes

Description

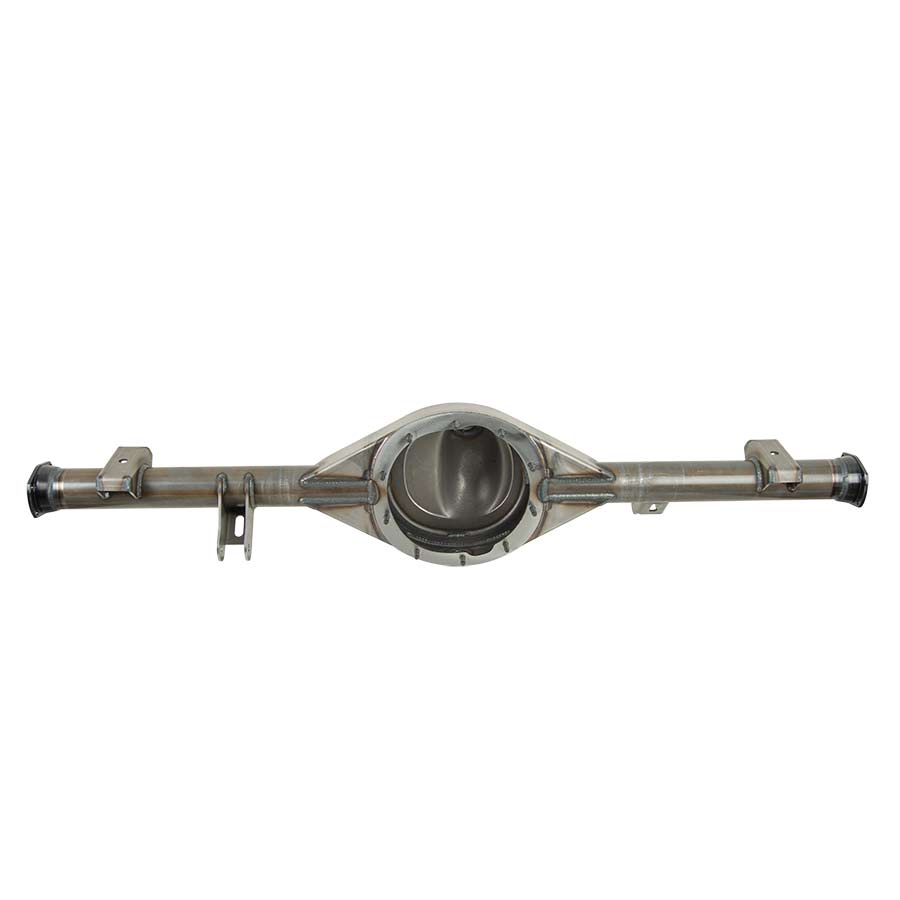

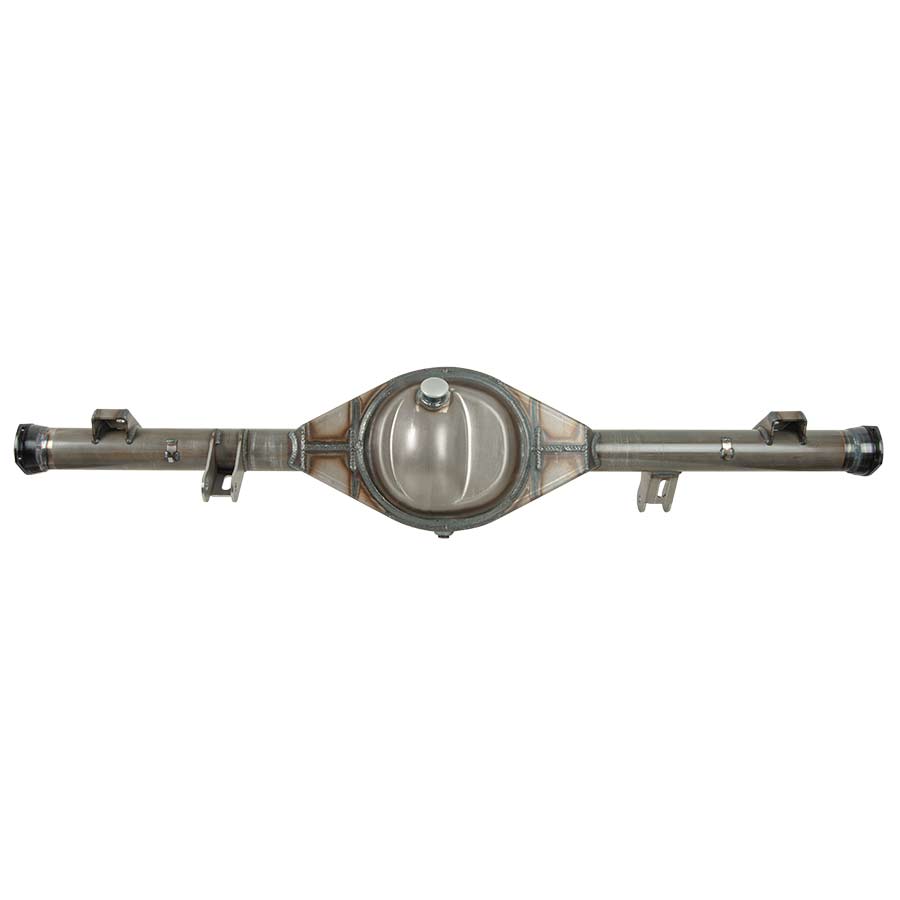

Strange HD Ford 9″ Bolt-in Housing

No Additional Charge For Custom Width

Features
Center Housing – H1110
• Constructed from .141″ mild steel
• Heavy duty .282″ thick face plate
• Internal gussets provide rigidity and support axle tubes
• Slots allow exceptional weld contact of housing to tubes

Fill & Drain plugs – H1117D
• Facilitate fluid changes

Tubing – H1139
• Mild steel
• 3″ OD x .250″ wall
• Brake line tabs

Vent – H1112B
• Prevents build-up of internal pressure
• Ensures sealing integrity

Truck Mounts
• HD mild steel construction

Housing Ends
• Forged steel
• Choice of Strange end

Professionally Welded
• Jig welded to ensure proper alignment
• Exceptional weld quality

Related Components

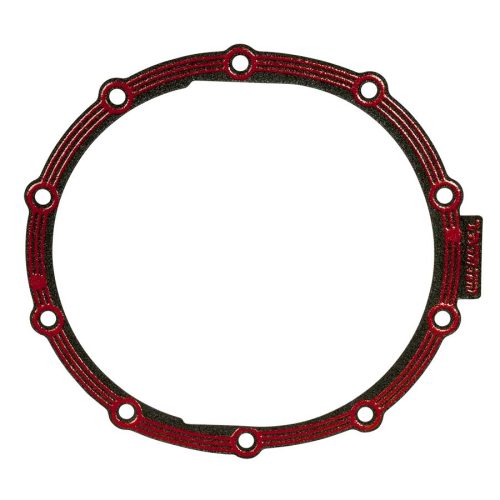

Gasket
LubeLocker®………. H1111S

Floater Kit
Pro Touring…………… F5010

Axle Packages
Alloy……………….. P3102 / P3104
Pro Race…………. P1007 / P1008

See Our Full Line of Center Sections
Available for Drag Race Only, Street / Track, and Performance Street Vehicles



This product is only available from an Authorized Strange Dealer or Factory Direct Call - 800-646-6718 or Email Us

Description

Strange 9 inch rear ends for 1988 through 1998 Chevy C1500 trucks.

Strange has designed a true bolt in rear axle for those wanting to upgrade the C1500 rear rend on their classic Chevy truck. The Strange 9 inch C1500 posi rear ends are designed to match the OE axle width, location of the pinion, suspension mounting points, and bolt patterns.

The housings are welded in high quality fixtures ensuring a true bolt-in product. The 9 inch C1500 Posi Rear End is available in a variety of configurations to accommodate any application from bolt-in street applications to purpose built race vehicles.

Strange Engineering has designed improvements to the Ford 9 inch rear ends for the automotive industry. Strange has increased the strength of the Ford 9 inch in several different ways. The Strange 9 inch housing is a semi-floating, drop-out axle. Because of its strength you will see these 9 inch rear ends in just about every make of car, not just Fords.

The Ford 9 inch housing has a vast amount of ford 9 inch gear ratios available. This combined with easy assembly makes it popular for fine tuning your rear gear for any particular need. Strange Engineering is the most recognized name in the aftermarket industry when it comes to Ford 9 inch rears. From high performance street cars to Pro Mod, Strange Ford 9 inch housings are relied on by more racers than all other manufacturers combined.



Applications:
1988 Chevy C1500, 1989 Chevy C1500, 1990 Chevy C1500, 1991 Chevy C1500, 1992 Chevy C1500, 1993 Chevy C1500. 1994 Chevy C1500, 1995 Chevy C1500, 1996 Chevy C1500, 1997 Chevy C1500, 1998 Chevy C1500

1988 Chevy K1500, 1989 Chevy K1500, 1990 Chevy K1500, 1991 Chevy K1500, 1992 Chevy K1500, 1993 Chevy K1500. 1994 Chevy K1500, 1995 Chevy K1500, 1996 Chevy K1500, 1997 Chevy K1500, 1998 Chevy K1500

1992 Blazer (Full Size), 1993 Blazer (Full Size), 1994 Blazer (Full Size)

1995 Tahoe, 1996 Tahoe, 1997 Tahoe, 1998 Tahoe, 1999 Tahoe

1992 Suburban, 1993 Suburban, 1994 Suburban, 1995 Suburban, 1996 Suburban, 1997 Suburban, 1998 Suburban, 1999 Suburban
