Specifically Designed For Drag Racing

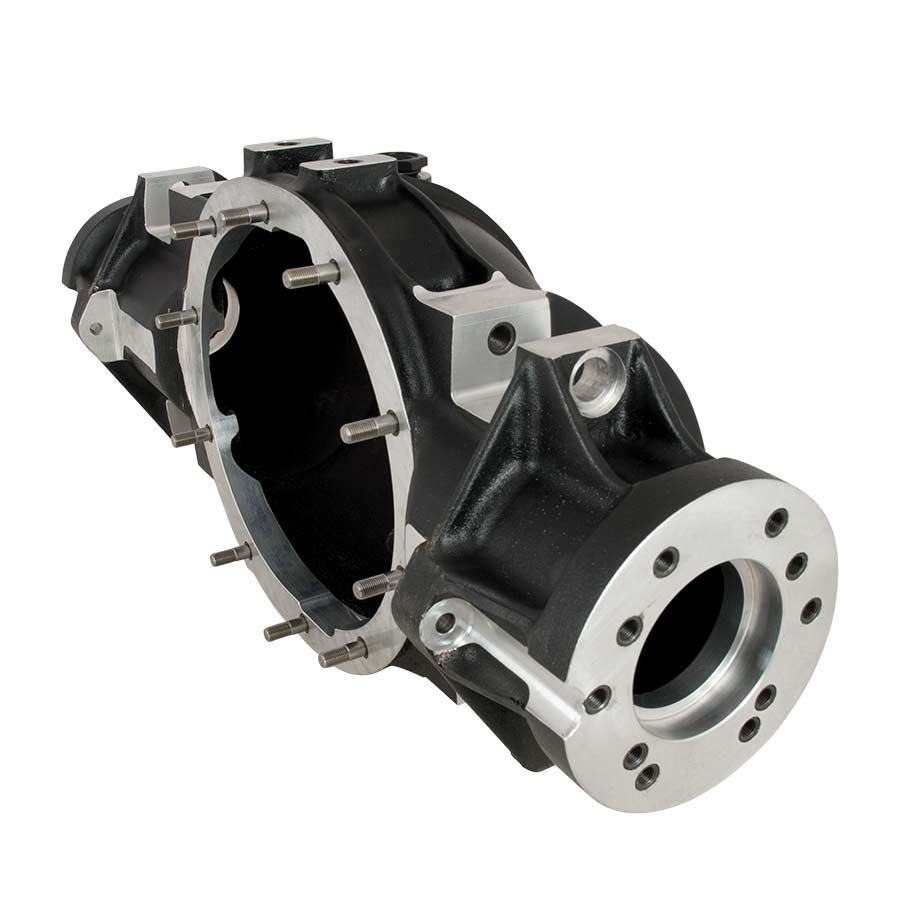

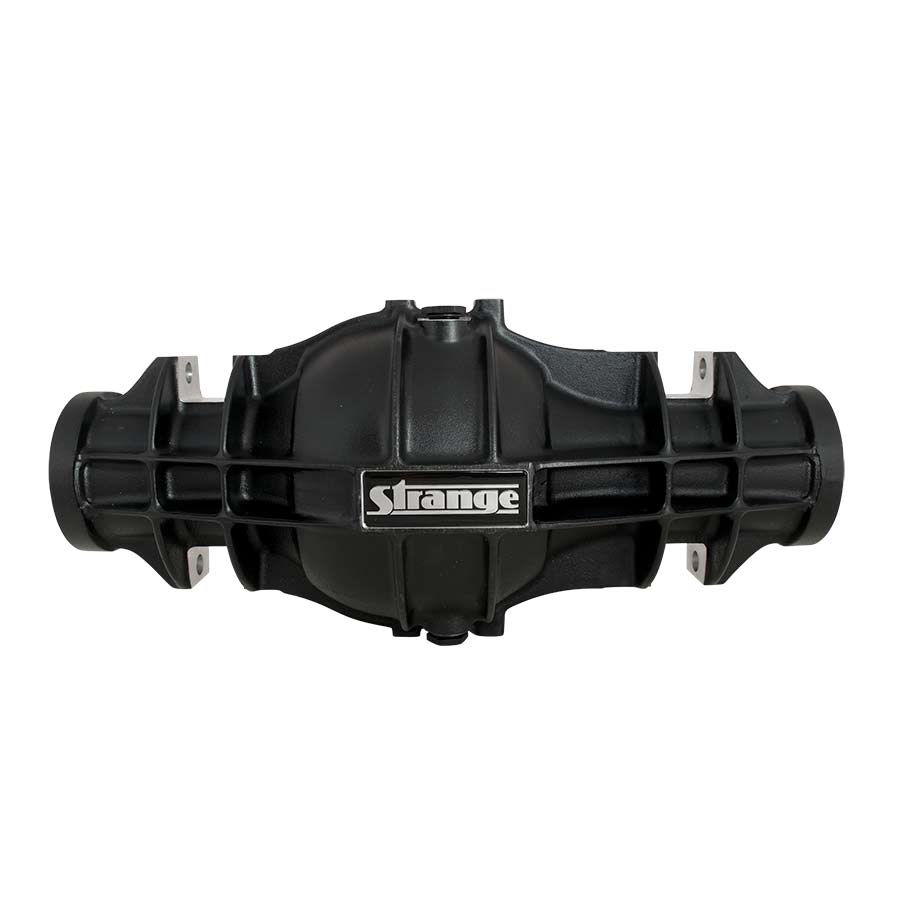

One Piece Aluminum Housing – 27″ Wide
For Dragsters & Altereds using a 4-link system
Plates Sold Separately
Axle Flange to Axle Flange Width – Without Brakes
31.664″ with 2.332″ axle offset (F dimension)
32.664″ with 2.832″ axle offset (F dimension)
Benefits
• Lightweight & rigid one piece unit
• CNC machined for extreme accuracy
• Ensures perfect alignment of axles to center section
Features
• 206-T4 aluminum
• Fill & Drain plugs
• Upper & lower anti-rotation mounting pads
• 27″ wide with centered pinion
• 17″ 4-link location centers
• Includes spacer blocks & bolts
• Black Enduraguard® finish
• Designed & machined by Strange
• Cast in the USA
Related
4 Link plate – H1150PH4

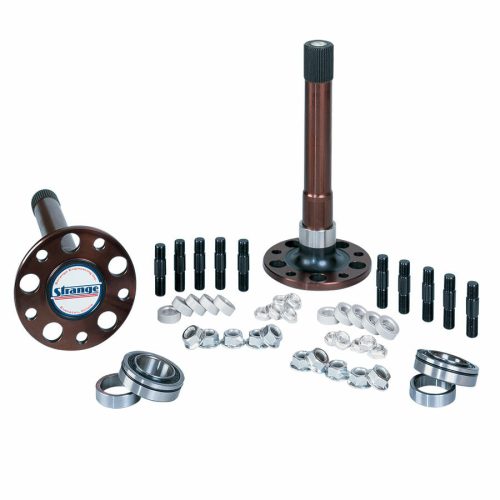

Axle Packages
35 spline – P100758
40 spline – P1014
Pro Series Brake Kits
Single with 2.832″ axle offset – B1150WC / B1150WCM
Single with 2.332″ axle offset – B1158WC / B1158WCM
Dual with 2.832″ axle offset – B1150WCD / B1150WCDM
Pro II Brake Kits
Single with 2.832″ axle offset – B1150WC2 / B1150WCM
Dual with 2.832″ axle offset – B1150WCD2 / B1150WCDM2
Evolution Brake Kit
Single with 2.832″ axle offset – B1150WCE / B1150WCEM
Dual with 2.832″ axle offset – B1150WCDE / B1150WCDEM
