Hy-Tuf axles are optimized for Drag Race use only
See our Alloy axle packages for street / track applications

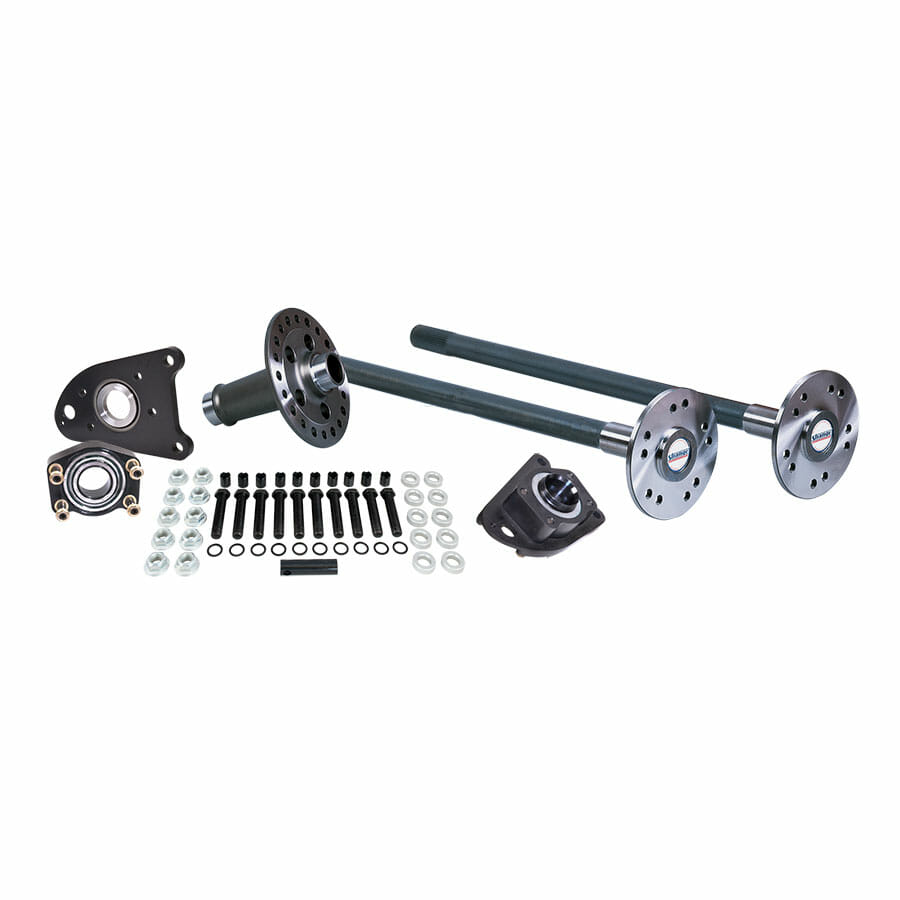

Package Includes
Hy-Tuf Ultra Strength Axles – A1000
• Forged from low carbon, high manganese, high nickel, and high molybdenum steel
• Majority of machining performed before heat treat to provide consistent hardness
• Thru hardened to Rc 45-48 to maximize the materials torsional strength
• Finish machined after heat treat to ensure accuracy
• Upgraded to 35 spline axles
• Custom lengths available at no extra charge
• Choice of bolt circle
• Designed and machined by Strange Engineering
• Forged in the USA
C-Clip Eliminator Kit – A1094 GT brakes / A1095 Cobra brakes
• Billet aluminum caliper mounts to accept OEM brakes
• Aluminum inner halves
• Timken® Tapered Unit bearings for long bearing life
• Bearing spacer/reluctor ring adapters
• Locking rings
• Outer seals
• O-rings
• Housing end bolts
• Hardened washers for use with OEM caliper mounting bolts
Choice of 5/8″ Bolt Style Stud Kit – A1027S / A1027 / A1027L
• 5/8″-18 x 3″ Grade 8 fully threaded bolts *
• Thin .200″ hex head provides additional clearance
• Width choice of anti-marring/spacer washers
• Includes threaded sleeves, installation tool & flanged lug nuts
* Measured from underneath the hex of the stud
Double Ended 5/8″ Studs Will Not Clear This Eliminator Kit
Lightweight Steel Spool – D1567
• Forged from premium 4140 steel
• Lightened to maximize strength to weight
• Forged in the USA
• Designed and machined by Strange Engineering
Notes For ABS
This kit will not work with factory reluctor rings – Custom rings sold below
Read instructions carefully beforehand as assembly order is crucial
Options
Custom 94-04 reluctor ring…………….. A1094E
Lightening holes in flange……………….. A1003
Ultra Light flange…………………………….. A1006
Labor Only
Install eliminator kit……………………….. A1008C
Install eliminator kit & studs…………. A1008SC
Install elim kit, studs, & reluctors…. A1008SRC
Other Packages
Pro Race
1986-1993…………………………………… P2000FM8658
2005-2014…………………………………… P2000FM0558

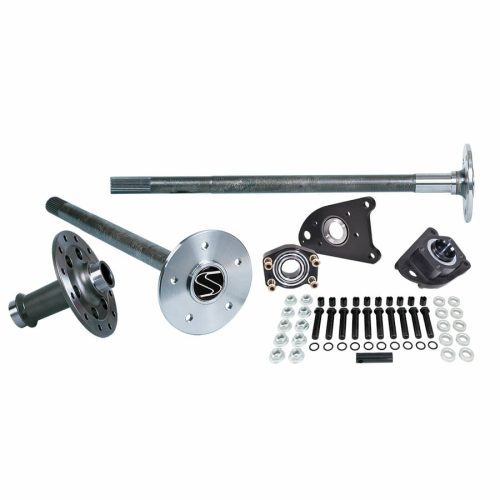

Alloy
1986-1993…………………………………… P3509F8658S
1994-2004…………………………………… P3509F9458S
2005-2014…………………………………… P3509F0558S
