Hy-Tuf axles are optimized for Drag Race use only
See our Alloy axle packages for street / track applications

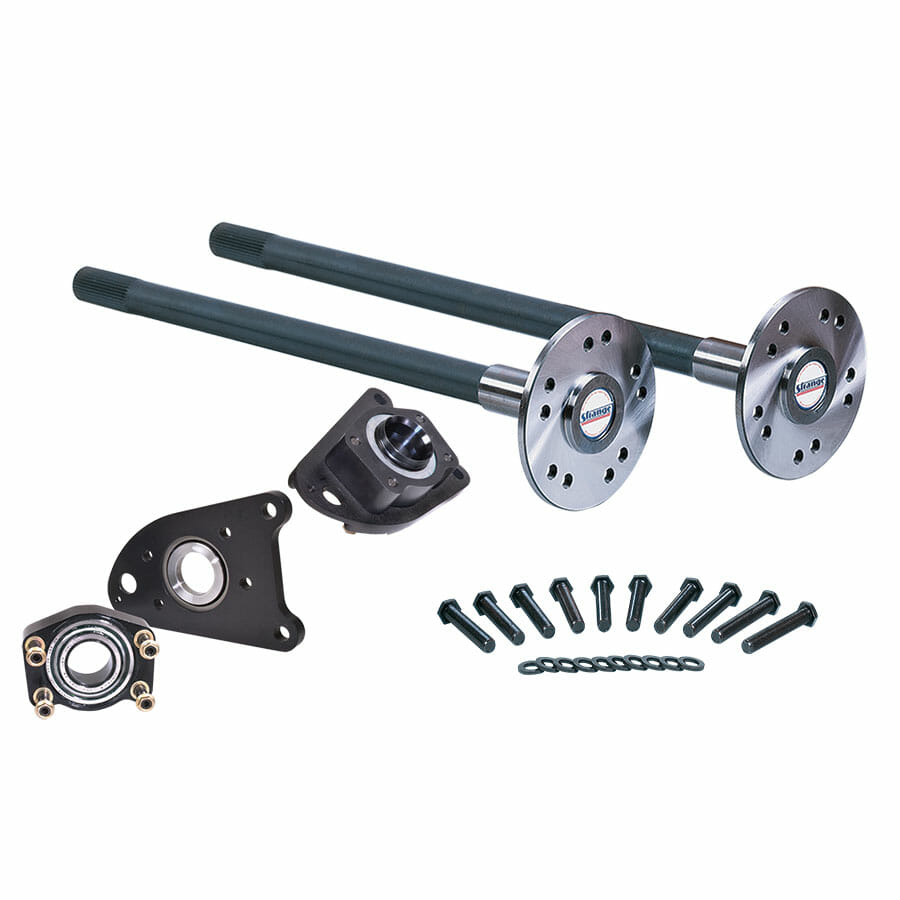

Package Includes
Hy-Tuf Ultra Strength Axles – A1000
• Forged from low carbon, high manganese, high nickel, and high molybdenum steel
• Majority of machining performed before heat treat to provide consistent hardness
• Thru hardened to Rc 45-48 to maximize the material’s torsional strength
• Finish machined after heat treat to ensure accuracy
• Choice of 31, 33, or 35 spline
• Custom lengths available at no additional charge
• Choice of bolt circle
• Designed and machined by Strange Engineering
• Forged in the USA
C-Clip Eliminator Kit – A1094 GT brakes / A1095 Cobra brakes
• Billet aluminum caliper mounts to accept OEM brakes
• Aluminum inner halves
• Timken® Tapered Unit bearings for long bearing life
• Bearing spacer/reluctor ring adapters
• Locking rings
• Outer seals
• O-rings
• Housing end bolts
• Hardened washers for use with OEM caliper mounting bolts
1/2″-20 Screw-in Wheel Studs – A1025 / A1026
• Chrome moly material
• Threads are rolled for maximum strength
• Choice of 2″ or 3″ long studs *
• Includes .060″ hardened washers
* Measured from underneath the hex of the stud
Notes For ABS
This kit will not work with factory reluctor rings – Custom rings sold below
Read instructions carefully beforehand as assembly order is crucial
Options
Custom 94-04 reluctor ring…………….. A1094E
Lightening holes in flange……………….. A1003
Ultra Light flange…………………………….. A1006
Labor Only
Install eliminator kit……………………….. A1008C
Install eliminator kit & studs…………. A1008SC
Install elim kit, studs, & reluctors…. A1008SRC
Other Packages
Pro Race
1986-1993……………………………………. P1011F86
2005-2014……………………………………. P1011F05
Pro Race with Spool
1986-1993…………………………………… P2000FM86
1994-2004…………………………………… P2000FM94
2005-2014…………………………………… P2000FM05
Alloy
1986-1993……………………………………. P3109F86
1994-2004……………………………………. P3109F94
2005-2014……………………………………. P3109F05
