Application
1993-2002 Camaro / Firebird / Trans Am
Description

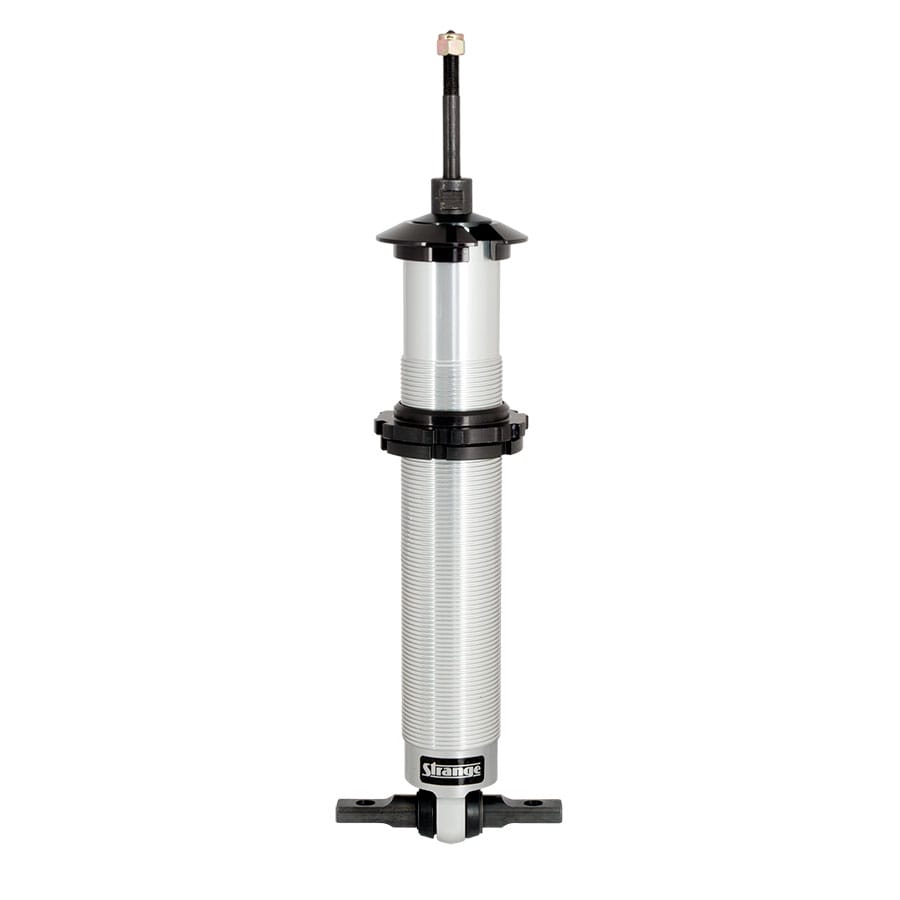

Single Adjustable Coil-Over Front Shock
Drag Race Only – Sold as each
Coil-Over Benefits
• Compact & lightweight
• Allows adjustments to ride height
• Wide range of spring rates available
Extension Adjustment
Softer – Allows for more weight transfer
Stiffer – Enables quicker reaction times
Rotating Knobs Clockwise Stiffens Valving

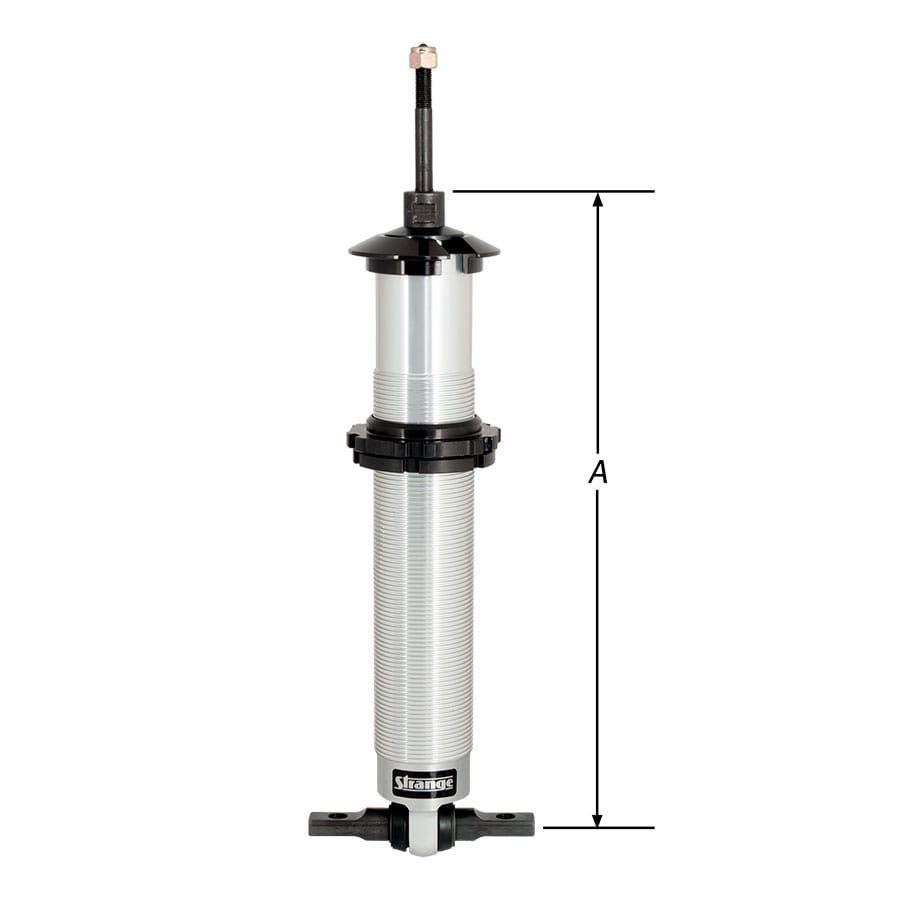

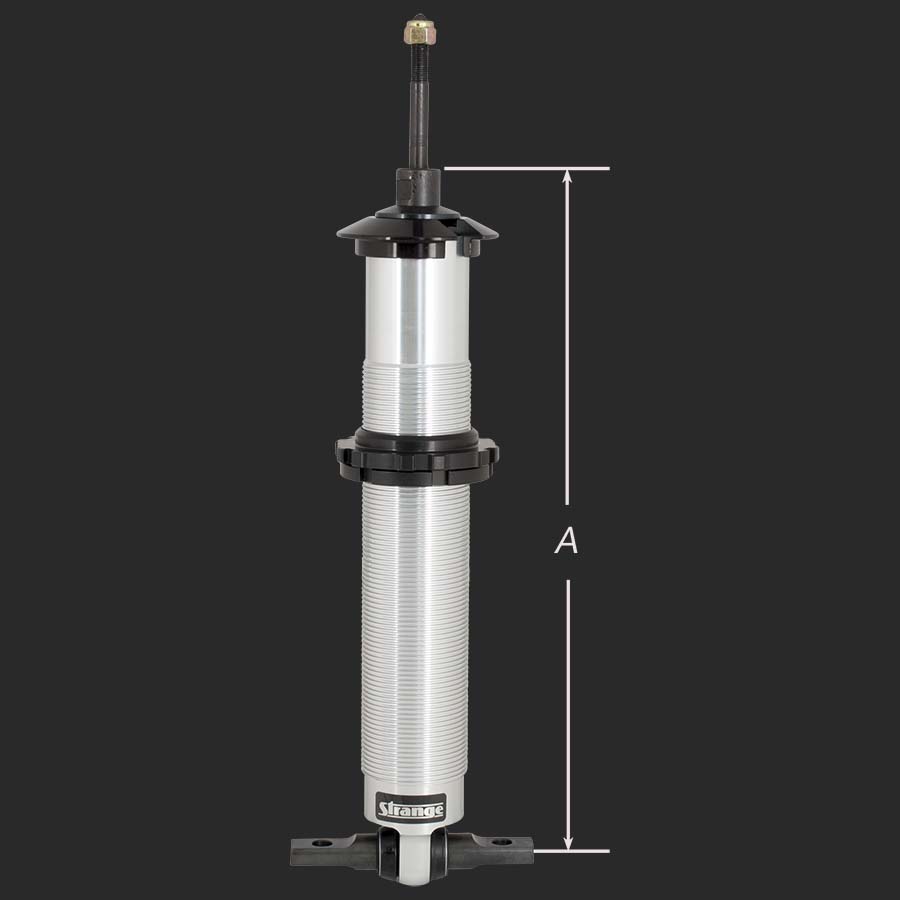

Dimension A
Extended 18.66″ / Compressed 13.96″
Features
• Lightweight aluminum body

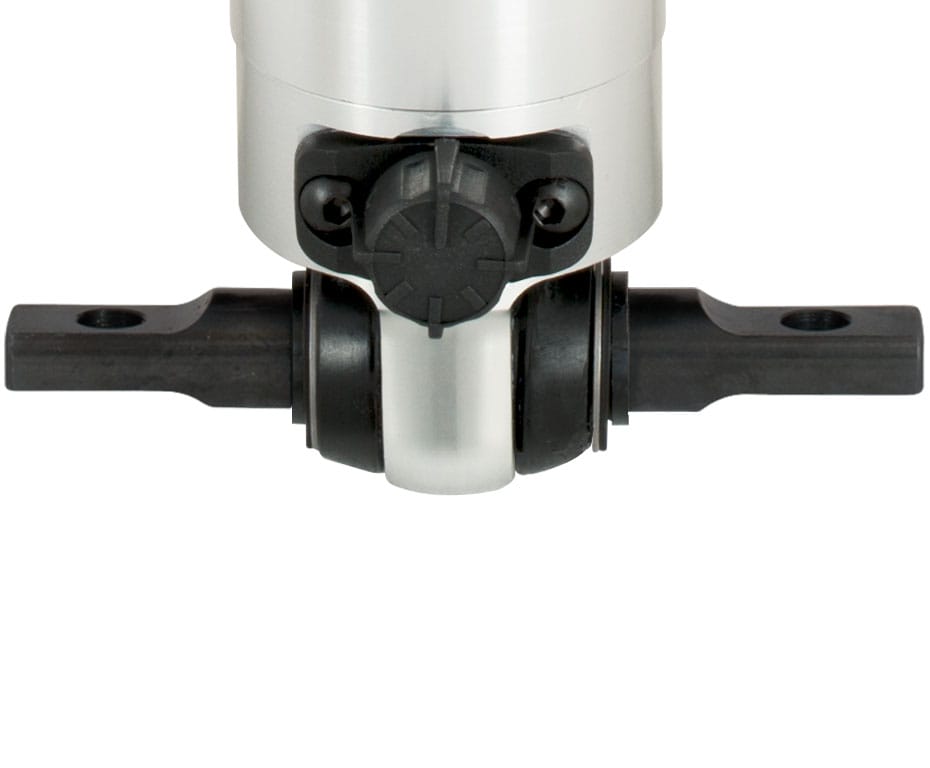

• External adjustment knob
• Provides 10 extension settings
• Allows quick adjustments for varying conditions
• Integral coil-over body
• Permits simple changes to ride height
• Custom valving available upon request
• Ability to be rebuilt or revalved
Spring
14″ x 2.5″ ID – Sold separately
Recommendation
275-300 lbs rate
Consult your chassis builder for their suggestion
Related Components
Double adjustable………… S5071
Spring seat bearing kit…… S1409
Spring seat wrench……….. S1413
Springs
14″ 275 lbs……………… SP14275
14″ 300 lbs……………… SP14300

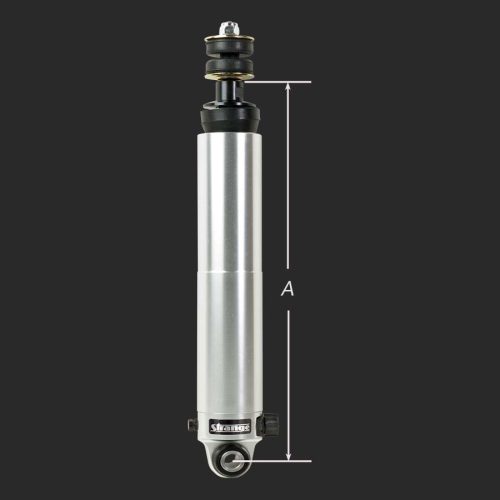

Rear Shock
Single adjustable………… S5270
Double adjustable………… S5070
