For Axles Drilled And Tapped 5/8″-18

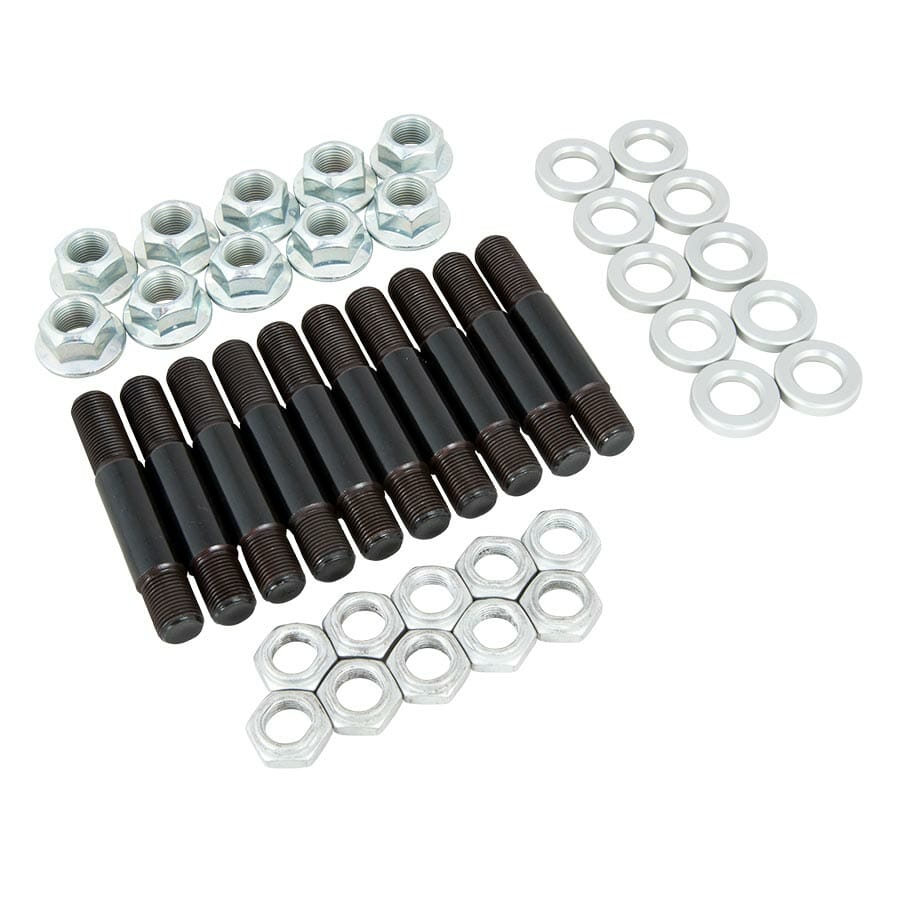

Kit Includes:
5/8″-18 Chrome Moly Studs
– Threads are rolled for maximum strength
– Internal 1/4″ hex to facilitate installation
– Zinc Phosphate coated to resist corrosion
– .686″ OD x 1.875″ wide shoulder to properly locate wheel *
Thin Head Self-Locking Nuts
– Ensures positive retention of wheel stud
– Provides additional backside clearance
– 15/16″ wrench size
.250″ Wide Aluminum Washers
– Reduces marring on wheel face from flanged lug nut
– Keeps lug nut from bottoming-out on stud shoulder
5/8″-18 Flanged Lug Nuts
– Provides secure clamping force
– 15/16″ wrench size
* Rotor hat width & wheel thickness will determine proper shoulder length
– Shoulder should exceed combination but not beyond washer width
Additional Kits Available:
With Different Width Washers
For .438″- See A1041
For .688″- See A1041L
With Other Shank Lengths
For 0.775″- See A1036
For 0.875″- See A1037
For 0.875″- See A1037MD (For Strange 2 pc Pro Stock axles)
For 1.188″- See A1038
For 1.500″- See A1039
