For Axles Drilled And Tapped 5/8″-18

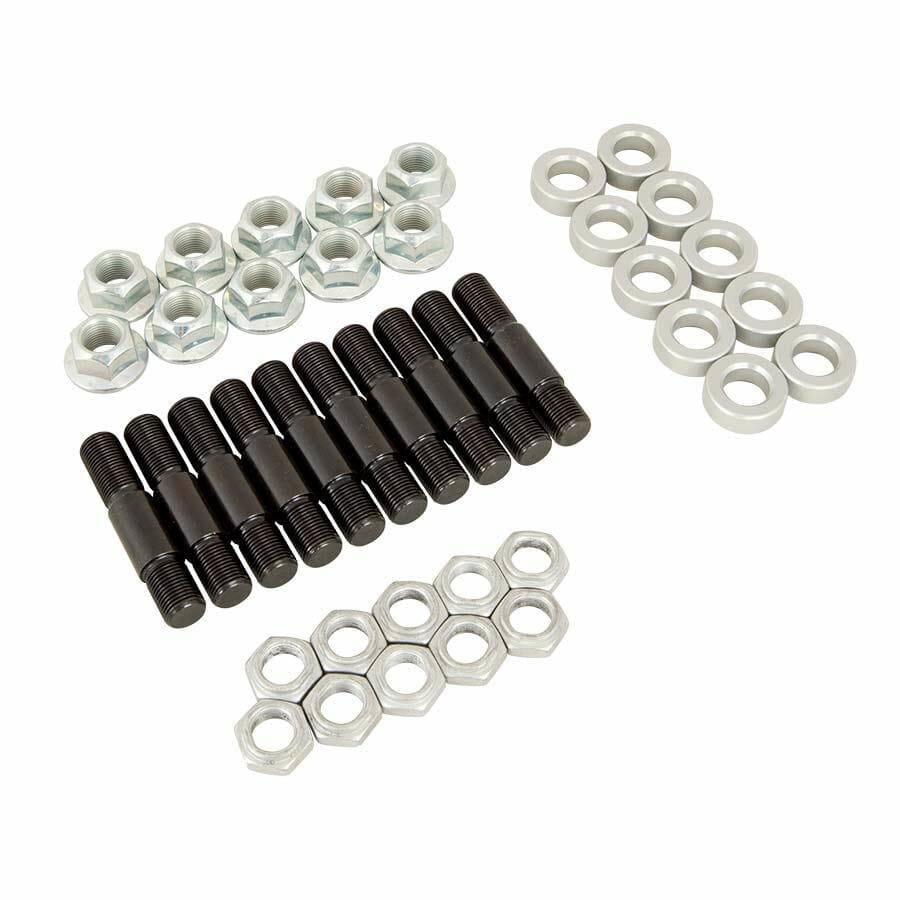

Kit Includes:
5/8″-18 Chrome Moly Studs
– Threads are rolled for maximum strength
– Internal 1/4″ hex to facilitate installation
– Zinc Phosphate coated to resist corrosion
– .686″ OD x 1.187″ wide shoulder to properly locate wheel
Rotor hat width & wheel thickness will determine proper shoulder length
Shoulder should exceed combination but not beyond washer width
Thin Head Self-Locking Nuts
– Ensures positive retention of wheel stud
– Provides additional backside clearance
– 15/16″ wrench size
.438″ Wide Aluminum Washers
– Reduces marring on wheel face from flanged lug nut
– Keeps lug nut from bottoming-out on stud shoulder
5/8″-18 Flanged Lug Nuts
– Provides secure clamping force
– 15/16″ wrench size
Additional Kits
Different Width Washers
For .250″……………. See A1038S
For .688″……………. See A1038L
Other Shank Lengths
For 0.775″…….. See A1036
For 0.875″…….. See A1037
For 0.875″…….. See A1037MD (For Strange 2 pc Pro Stock axles)
For 1.500″…….. See A1039
For 1.875″…….. See A1041
