Application
Strange 12 Bolt F-Body rear end
Using 3 channel ABS system
Note
This rear end will not accept the OEM sensor
Function
Allows use of factory 3 channel ABS system
Includes

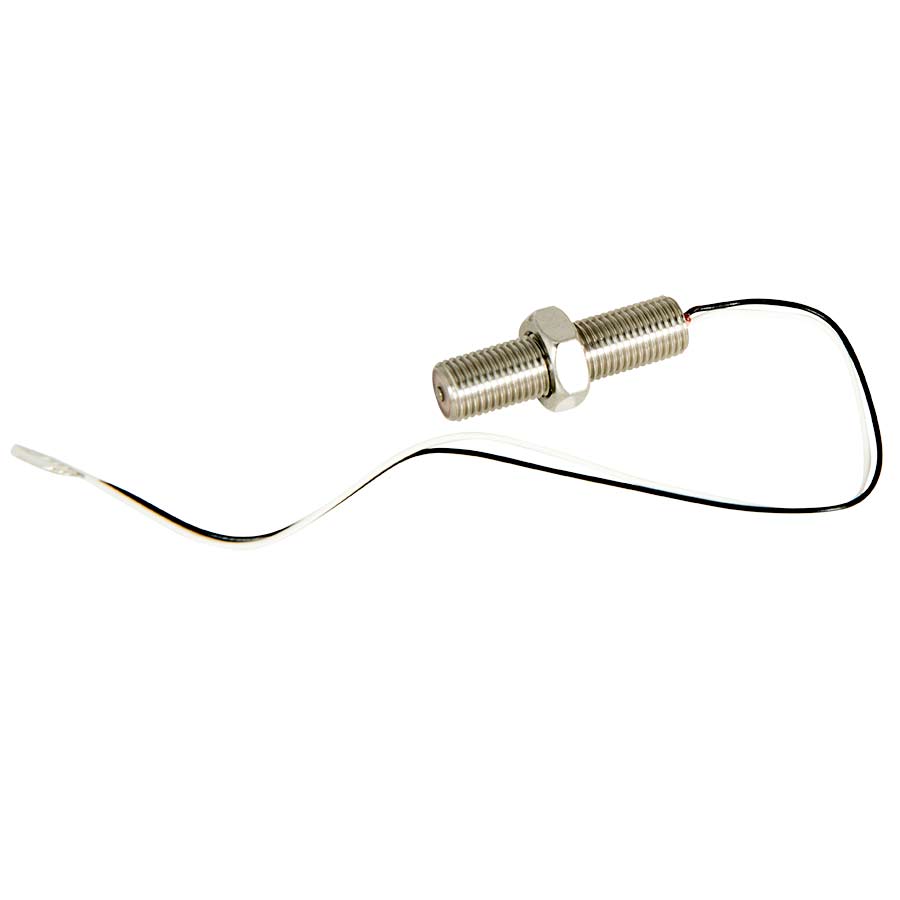

Sensor & jamb nut
O-ring is not included
Installation
Sensor is fragile
Do not over-tighten lock nut – Max is 40 inch lbs
Wires must be covered & protected from tension
Leave .010″ gap from the tip to the closest reluctor tooth
Related
Sensor o-ring… S5000SAB
