Application
Joins 3 AN female line at a 90° angle to 1/8″ NPT component
Description

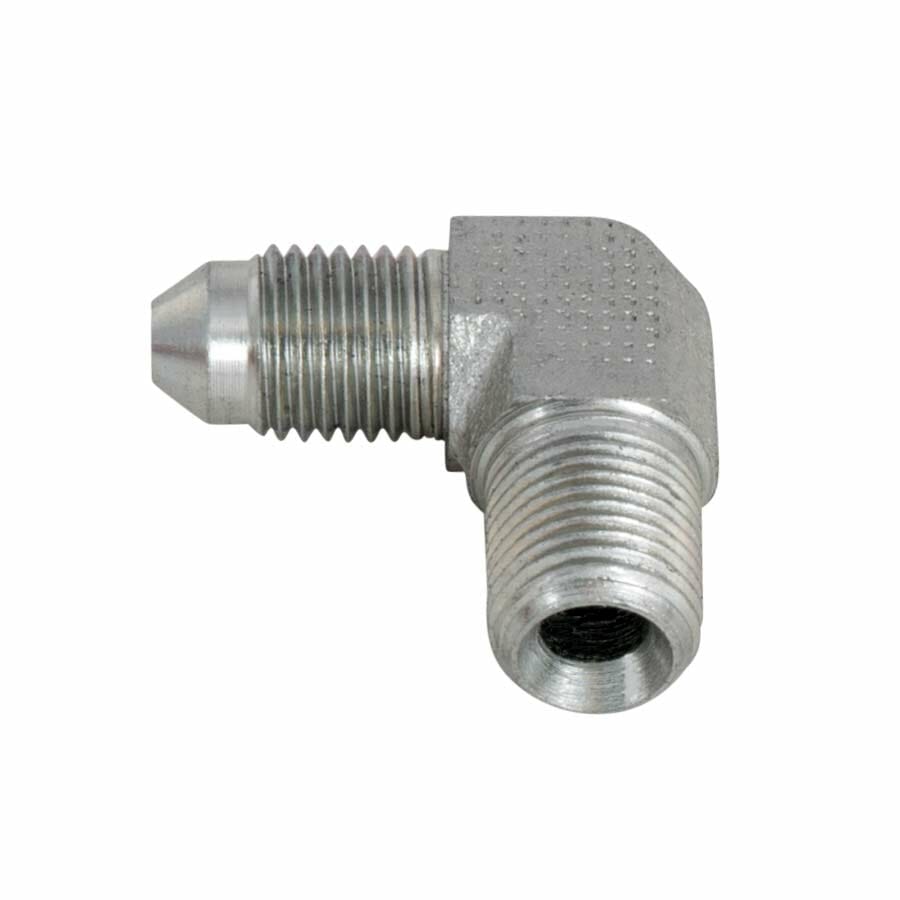

Steel fitting plated for corrosion resistance
37° male flare accepts female 3 AN fitting
Fits 1/8″ NPT threaded hole
Attaches line at 90° angle
Installation in Strange Calipers
Use Teflon® tape or liquid on the pipe threads of the fitting.
Leave a few threads from the tip uncoated to avoid depositing material inside.
Torque to 25 ft lbs.
