Designed Specifically For Drag Racing
Application
• Strange Aluminum Struts & Ultra Struts
• Strange Adjustable Height Funny Car Spindles
Using 1 Piece Billet or Forged Spindle Mount Wheels

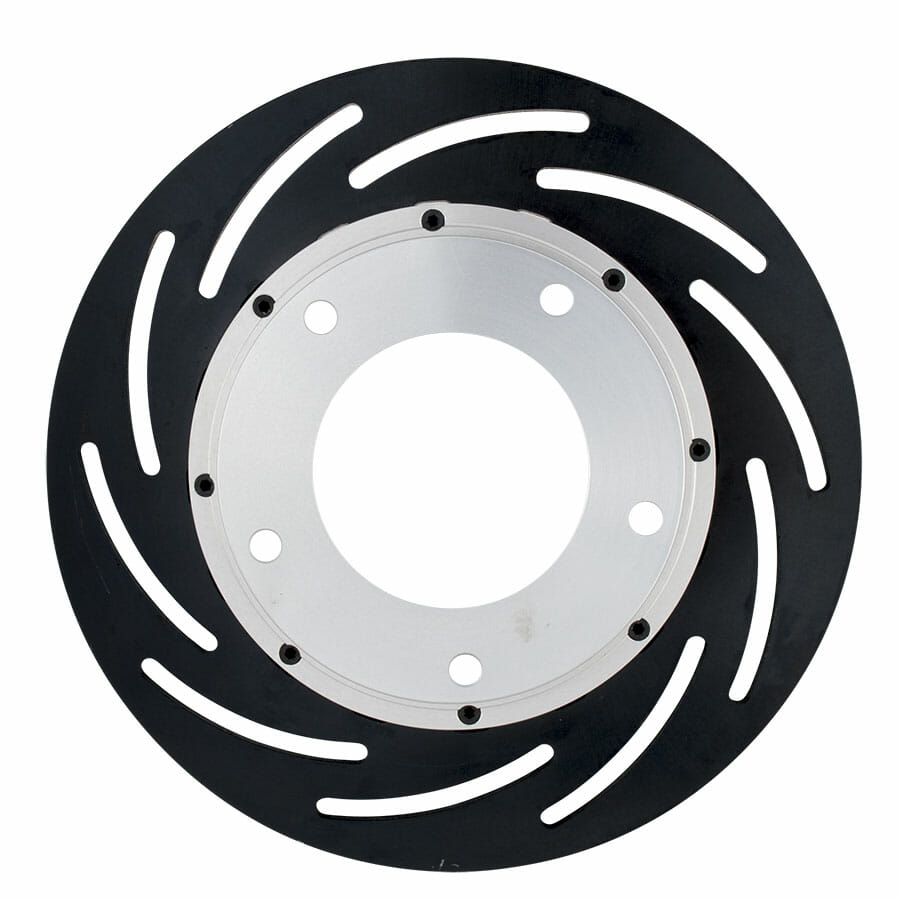

Left hand side assembly
Benefits
Mating cogs engage as the ring and FHSCS screws secure the assembly
Allows for axial and radial rotor growth as temperatures increase
Rotor warping and coning tendencies are drastically reduced
Supplied in Strange Brake Kit
B4595WC2 / B4596WC2 / B4597WC2 / B4600WC2
Steel Rotor
• Internal cogs allow rotor to float
• Allows for expansion variances between aluminum & steel
• Slots reduce rotating weight and increase air flow
Aluminum Hat
• 2024-T351 billet aluminum
• Reduces rotating weight
• Cog & ring system secures rotor while allowing for thermal expansion
• Eliminates crack formation common to other two piece designs
Dimensions
Rotor
10″ OD x .250″ thick
Discard at .215″
Hat
5.562″ OD x 5.312″ ID
.125″ thick face
.375″ holes on 4 3/4″ BC
Offset
1.00″ – Measured from outside face of hat to inner pad surface
Assembly Weight
3.6 Lbs
