1999-2006 Chevy Silverado 1500
1999-2006 GMC Sierra 1500
Strange HD 9" Ford Bolt-In Housing

$1,295.00

Part Number: HF9LEG99S15ME

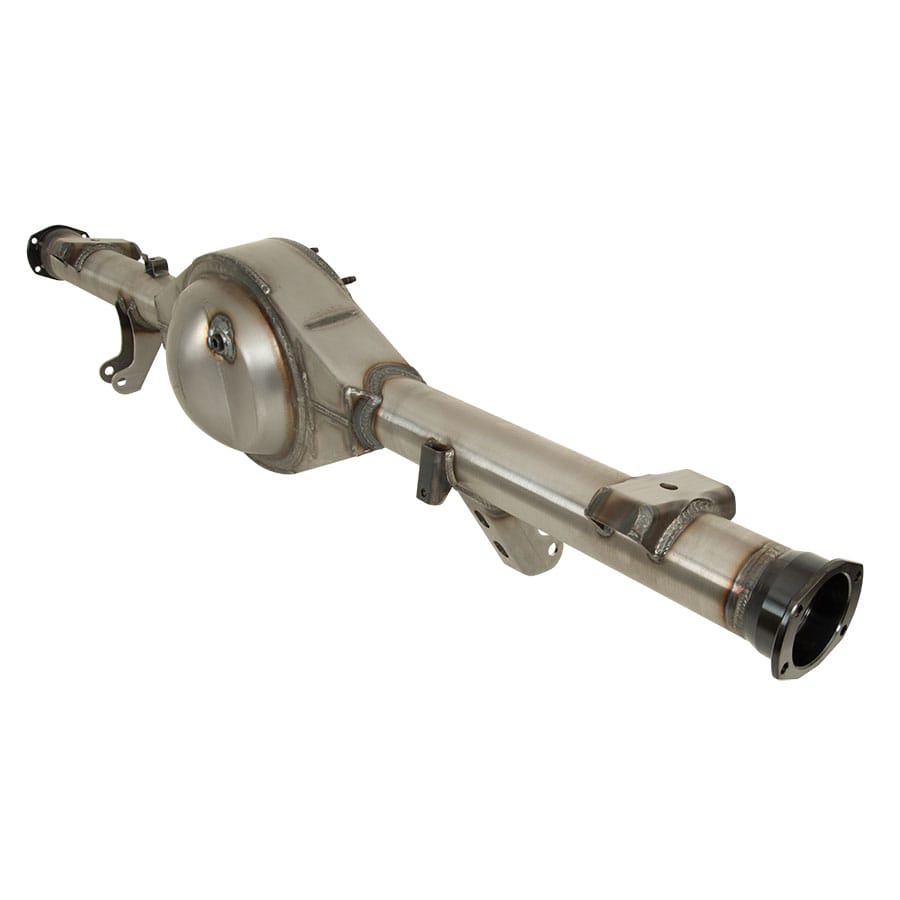

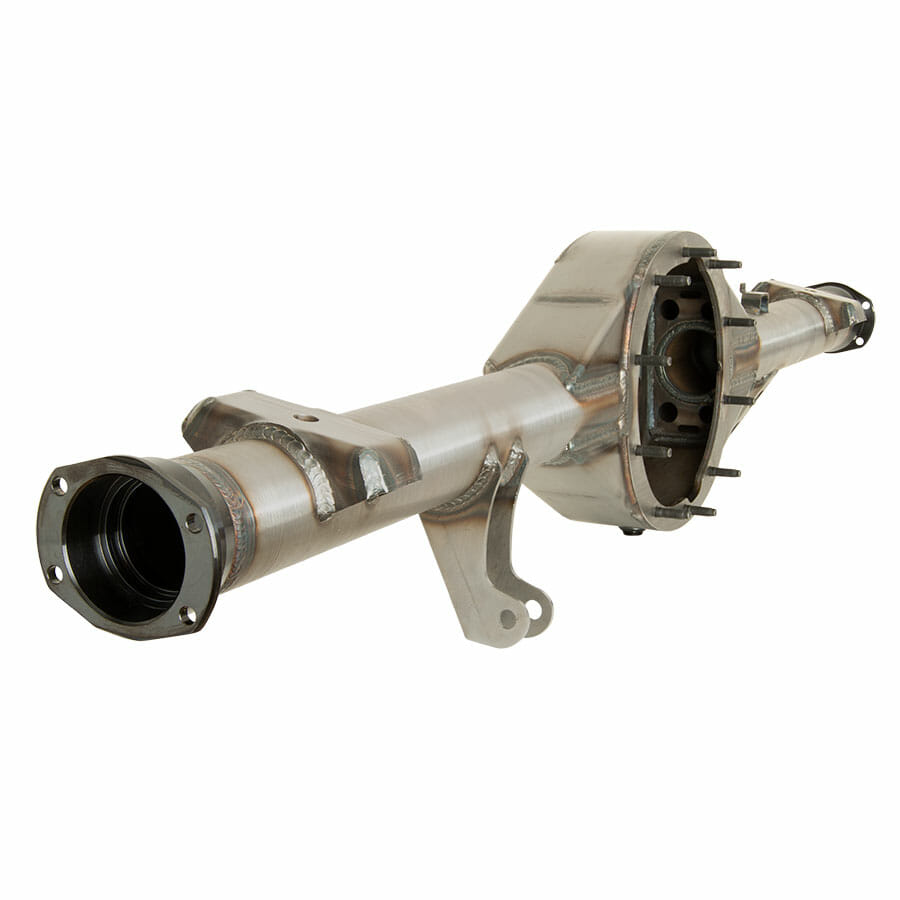

Strange HD Ford 9″ Bolt-in Housing
No additional charge for custom width

Applications
1999-2006 Chevy Silverado 1500 2WD & 4WD
1999-2006 GMC Sierra 1500 2WD & 4WD

• OEM mount locations
• Factory 1/2″ pinion offset to the passenger side

Works with OEM disc brakes
Requires Strange B1706TC99 OEM brake adapter kit
Does not allow retention of parking brakes

Center HousingH1112
• Constructed from .141″ mild steel
• Heavy duty .282″ thick face plate
• Internal gussets provide rigidity and support axle tubes
• Slots allow exceptional weld contact of housing to tubes

Fill & Drain plugs
• Facilitate fluid changes

Tubing
• Mild steel
• 3.250″ O.D. x .250″ wall
• Brake line tabs

Vent
• Prevents build-up of internal pressure
• Ensures sealing integrity

Truck Mounts
• HD mild steel construction

Housing EndsH1137T
• Billet 1026 steel
• Designed for special tapered axle bearing & seal

Professionally Welded
• Jig welded to ensure proper alignment
• Exceptional weld quality

Related
Axle package – P3502T / P3504T
Housing gasket – H1111S

See Our Full Line of Center Sections
Available for Drag Race Only, Street / Track, and Performance Street Vehicles

This product is only available from an Authorized Strange Dealer or Factory Direct Call - 800-646-6718 or Email Us

Description

Strange 9 inch rear ends for 1999 through 2006 Chevy 1500 & GMC 1500 trucks.

Strange has designed a true bolt in rear axle for those wanting to upgrade the 1500 rear rend on their Chevy or GMC truck. The Strange 9 inch rear ends are designed to match the OE axle width, location of the pinion, suspension mounting points, and bolt patterns.

The housings are welded in high quality fixtures ensuring a true bolt-in product. The 9 inch Rear End is available in a variety of configurations to accommodate any application from bolt-in street applications to purpose built race vehicles.

Strange Engineering has designed improvements to the Ford 9 inch rear ends for the automotive industry. Strange has increased the strength of the Ford 9 inch in several different ways. The Strange 9 inch housing is a semi-floating, drop-out axle. Because of its strength you will see these 9 inch rear ends in just about every make of car, not just Fords.

The Ford 9 inch housing has a vast amount of ford 9 inch gear ratios available. This combined with easy assembly makes it popular for fine tuning your rear gear for any particular need. Strange Engineering is the most recognized name in the aftermarket industry when it comes to Ford 9 inch rears. From high performance street cars to Pro Mod, Strange Ford 9 inch housings are relied on by more racers than all other manufacturers combined.



Applications:
1999 Chevy Silverado 1500, 2000 Chevy Silverado 1500, 2001 Chevy Silverado 1500, 2002 Chevy Silverado 1500, 2003 Chevy Silverado 1500, 2004 Chevy Silverado 1500. 2005 Chevy Silverado 1500, 2006 Chevy Silverado 1500.

1999 GMC Serra 1500, 2000 GMC Serra 1500, 2001 GMC Serra 1500, 2002 GMC Serra 1500, 2003 GMC Serra 1500, 2004 GMC Serra 1500. 2005 GMC Serra 1500, 2006 GMC Serra 1500.
