Application
1993-2002 Camaro / Firebird / Trans Am
Using factory brakes & ABS system
Description
Strange 12 Bolt F-Body Rear End Assembly
Equipped with Eaton 33 spline Truetrack *
* Do not use Friction Modifier or Synthetic gear oil
(Petroleum Base Fluid Only)
Aftermarket Torque Arm May Need to be Modified
Custom made to your specifications
Factory or custom widths available at no additional charge
Professionally welded and assembled
Crated to protect your investment
Brake Requirements
1993-1997
Will accept factory brakes
Requires optional billet caliper mounts
1998-2002
Requires customer’s caliper mounts & backing plates
Must be sent-in to assemble rear end
3 Channel ABS
Reluctor ring is located on differential
Special Strange ABS sensor included
4 Channel ABS
Reluctor rings are located on axles
OEM rings must be sent-in for assembly
Rings are also available for purchase
Information Required
Year of vehicle
Factory or custom width
3 or 4 channel ABS
Gear Ratio
Stud choice
Gear Selection
3.08 / 3.42 / 3.55 / 3.73 / 3.90 / 3.91
Assembly Includes
12 bolt F-Body housing with mounts – H12FME
33 spline Alloy axle package – P3302
4 3/4″ bolt circle
Choice of wheel stud kit – A1035 / A1025 / A1026
Standard gear set
Eaton 33 spline Truetrack – R5091T
Choice of gear ratio
S-Series pinion yoke – U1602
U-Joint – U1645 *
Pinion yoke u-bolt kit – U1610
Chrome steel cover – R5199
Fully crated – No extra charge
* Conversion u-joint to suit stock driveshaft
Can be substituted with other u-joint upon request
Options
93-97 billet caliper mounts……… OPRG12

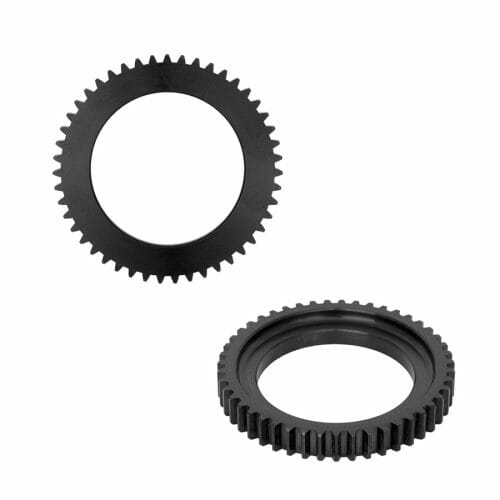

4 Channel reluctor rings………… OPRG13

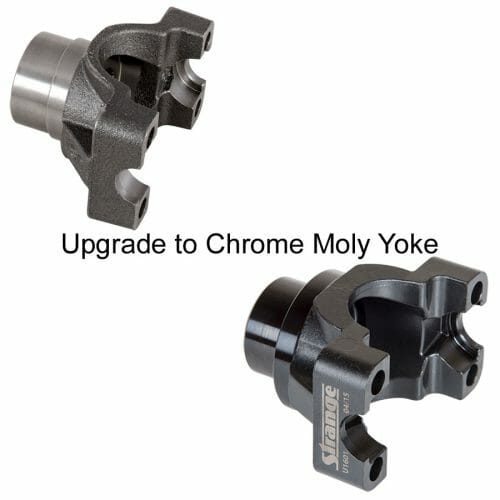

Chrome moly yoke………………. OPRG17 *

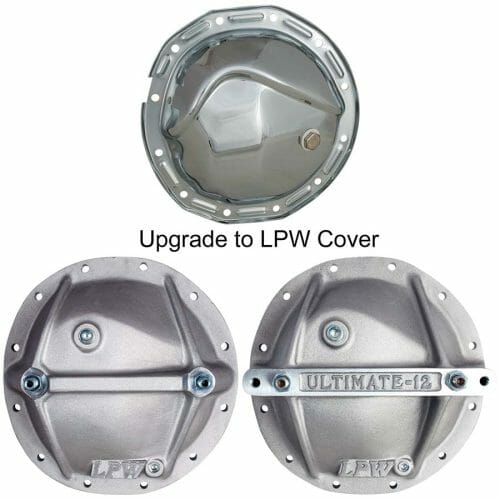

LPW aluminum cover……………. OPRG10
Black powder coat housing…….. H1199P-BLK
Supply 2 qts Lucas gear oil……… OPGL2Q
* Chrome moly yoke will require shorter driveshaft
