Description
12 bolt housing
Tubed with choice of housing ends – No mounts
Note
Ordering a housing in this state is not recommended
Great care must be taken when performing any further welding
Housing end alignment should be re-checked once completed
Features
Nodular iron center – H1106A
– Chrome moly main caps
– Plug provided to seal sensor hole
– Accepts 12 bolt internal components
3″ x .250″ Wall Tubes – H1139
– Seamless DOM mild steel

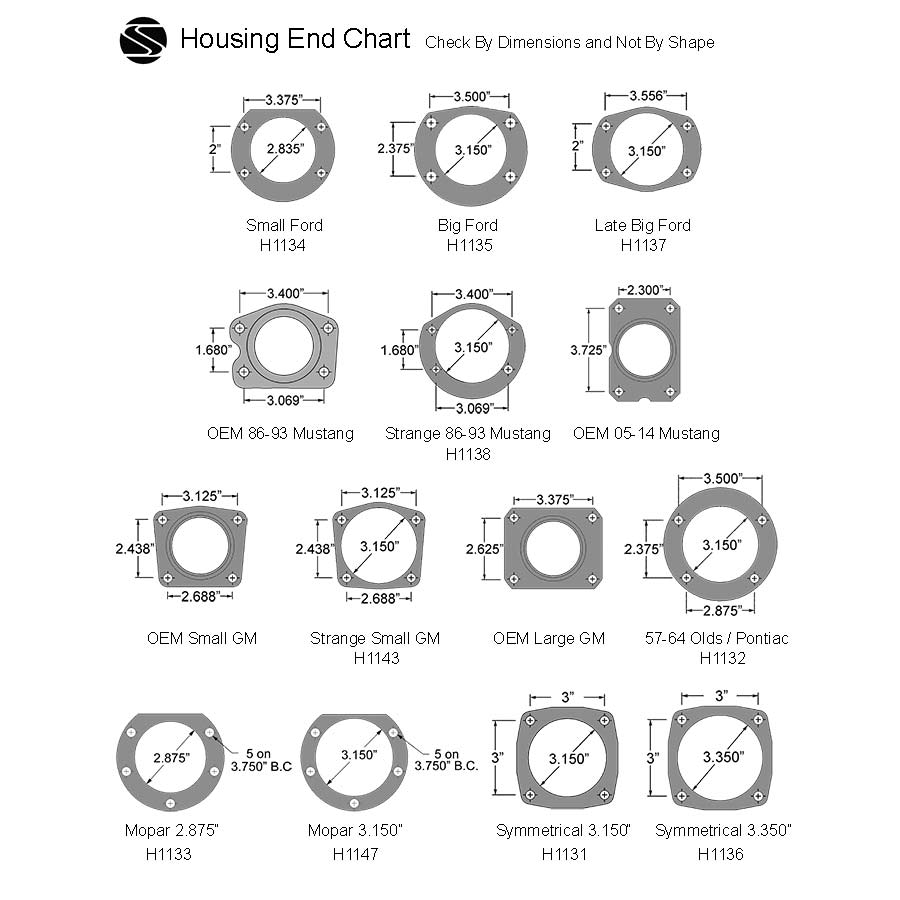

Choice Of Housing Ends – H1143 / H1132 / H1137
– Forged chrome moly
– Accepts 3.150″ tapered or ball style bearings
– Other Strange housing ends are also available
Choice Of Housing Width
– Factory or made-to-order width
– OEM or custom pinion offset
– No additional charges
Professionally Welded
– Jig welded to ensure proper alignment
– Tubes plug & 360° welded to casting
– Eliminates tube rotation issues
Related Components
Chrome cover…………………………. R5199
LPW cover………………………… R5206 / R5207
Cover gasket………………………….. H1106G
Gear install kit…………………………. R5211
Alloy Axle Packages
30 spline………………………….. P3104 / P310458
33 spline with spool……….. P3304S / P330458S
35 spline with spool……….. P3504S / P350458S
Pro Race Packages
33 or 35 spline with spool… P2005 / P200558
