Application
1982-2002 Camaro / Trans Am
Description
12 bolt housing
Includes tubes, F-Body mounts, & choice of housing ends
Features
Nodular Iron Center – H1106A
– Chrome moly main caps
– Integral torque arm provision
– Three channel sensor hole
– Accepts 12 bolt internal components
3″ x .250″ Wall Tubes – H1139
– Seamless DOM mild steel
Choice Of Housing Ends – H1143 / H1144 / H1137
– Forged chrome moly
– Accepts 3.150″ tapered or ball style bearings
– H1144 end clearenced for 4 channel ABS

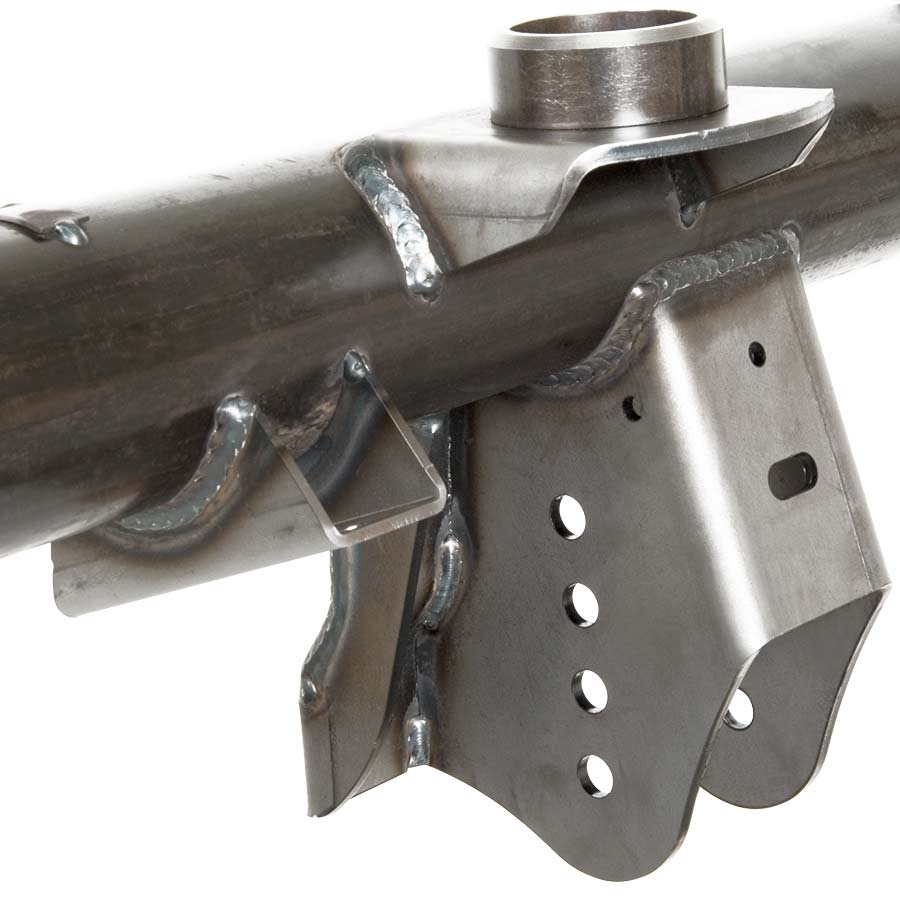

Coil Spring & Lower Control Arm Mounts
– Strange heavy duty
– Multiple lower control arm mounting holes
– Provides wide range of traction adjustment
Choice Of Housing Width
– Factory width
– Custom width at no additional charge
Professionally Welded
– Jig welded to ensure proper alignment
– Tubes plug & 360° welded to casting
– Eliminates tube rotation issues
Notes
Specify if using 3 channel, 4 channel, or no ABS
3 channel ABS requires Strange sensor & o-ring
Factory Drum Brakes
Will not fit 82-92 drum brakes
Must use 1980 and earlier
Factory Disc Brakes
93-97 require special caliper mounts
98-02 require housing end spacers
Related Components
3 channel ABS sensor………………………………. H1106S
Sensor o-ring…………………………………………. S5000SAB
93-97 caliper mounts………………………. B1105A / B1105B
98-02 spacer using tapered bearing………… B1105D
98-02 spacer using ball style bearing………. B1105DB
Powder coat housing……………………………. H1199P-BLK
Chrome cover…………………………………………… R5199
LPW cover…………………………………………………. R5206
Cover gasket……………………………………………. H1106G
Gear install kit…………………………………………… R5211
Alloy Axle Packages
30 spline………………………….. P3102 / P310258
33 spline………………………….. P3302 / P330258
33 spline with spool……….. P3302S / P330258S
35 spline with spool……….. P3502S / P350258S
Pro Race Packages
33 or 35 spline with spool… P2007 / P200758
