Application

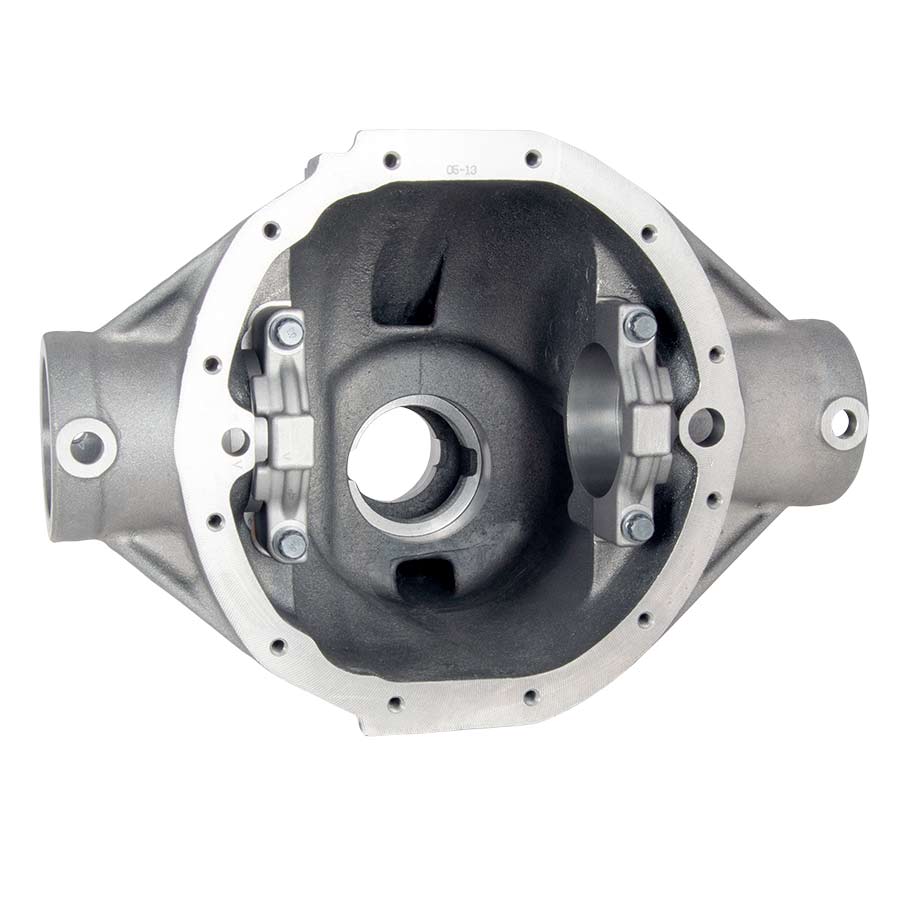

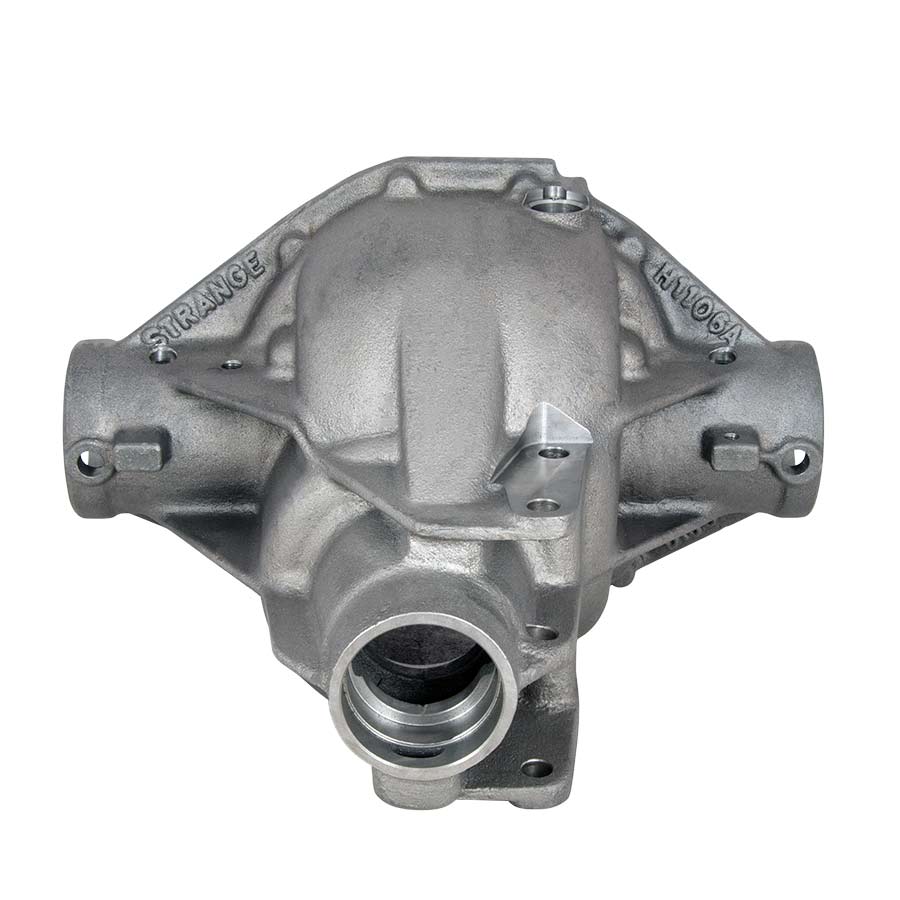

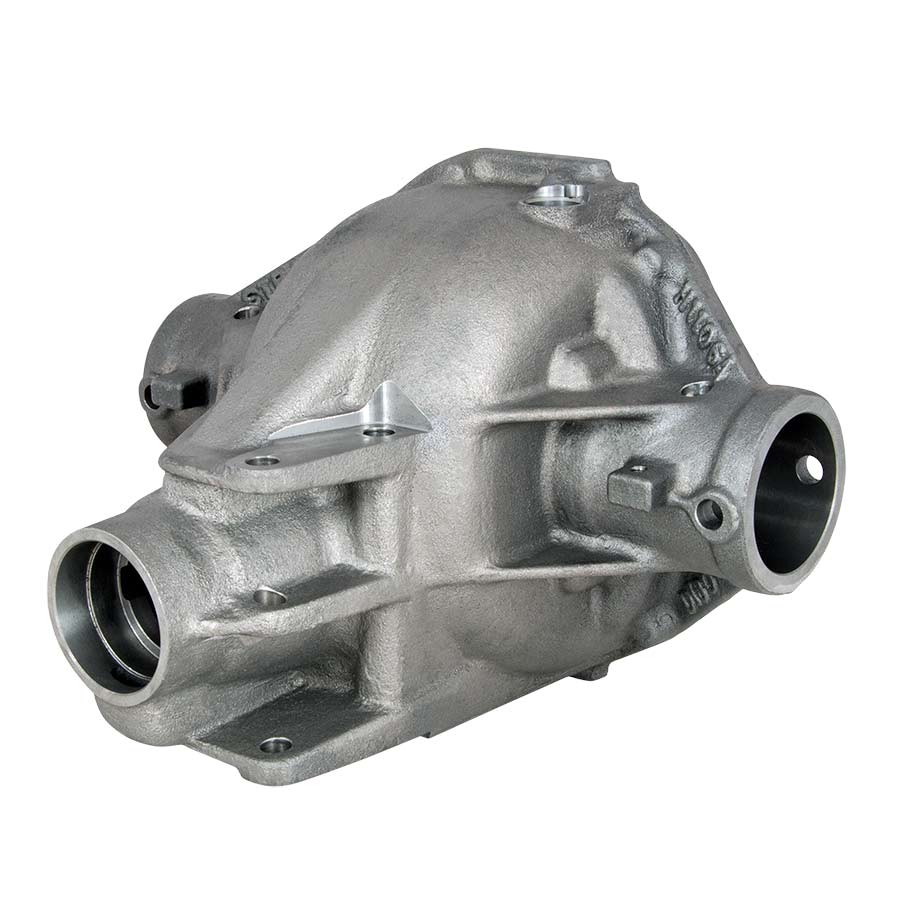

Foundation for 12 bolt housing fabrication
Can be used for F-body or leaf spring applications
Designed to accept 3″ OD housing tubing
• Premium Nodular iron
• Chrome moly main caps
• Torque arm provision
• Pick-up sensor hole
• Accepts 12 bolt internal components
• Designed & machined by Strange
• Cast in USA
Notes
3 Channel ABS
Will not accept OEM sensor
Requires plug, o-rings, screw, sensor & o-ring
4 Channel ABS or Without ABS
Requires plug, o-rings, & screw
Related Components
Plug – Not using a sensor… H1106W
Plug – Using a sensor………. H1106R
O-ring – Two required……… H1106U
Retaining screw……………….. H1106T
3 channel ABS sensor………. H1106S
Sensor o-ring…………………. S5000SAB
3″ housing tubing……………… H1139
GM 3.150″ housing ends…… H1143
GM 3.150″ 4 channel ends… H1144
